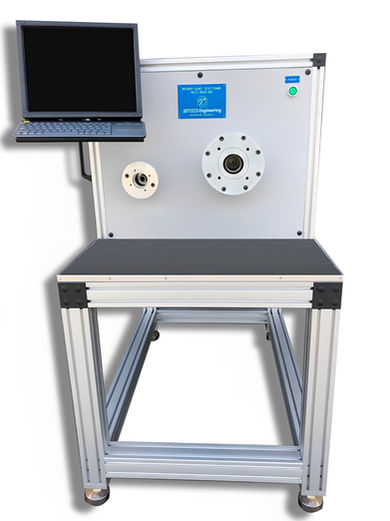

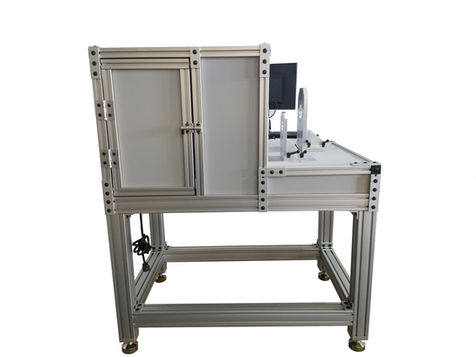

Rotatory Test Stand

DESCRIPTION

​

Engineered to test the performance of electrical motors by utilizing magnetic particle brakes and sensors to read torque and speed. This test stand is composed of three basic modules – the power module, the data acquisition module and the computerized display. Both low torque and high torque test ranges are covered.

​

TECHNICAL INFORMATION



Maximum Torque:       3600 Lbs.- in

Maximum Torque:       60 Lbs.- In

Maximum RPM:            1000 RPM





Overall Dimensions:



Length:                             45.75 inch

Width:                               30 inch

Height:                              54.21 inch
